INDUSTRY TECHPACKS (MOCK-UPS)

The tech packs displayed are mock-up designs created to showcase my technical design skills and proficiency in crafting comprehensive documentation for product development and technical design. These examples illustrate my ability to produce detailed and precise specifications aligned with industry standards.

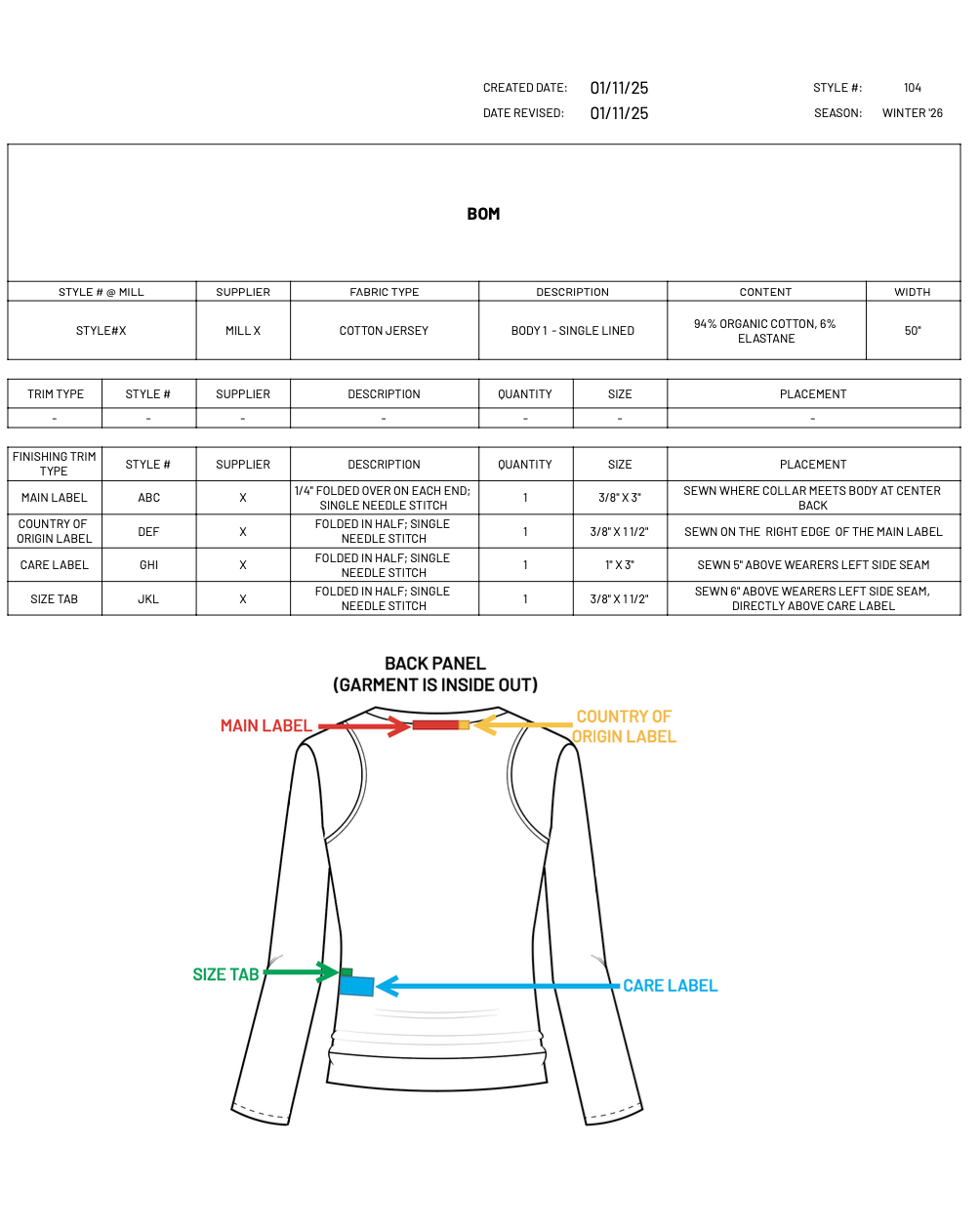

Screenshot 2025-01-23 at 7.55.34 pm.png

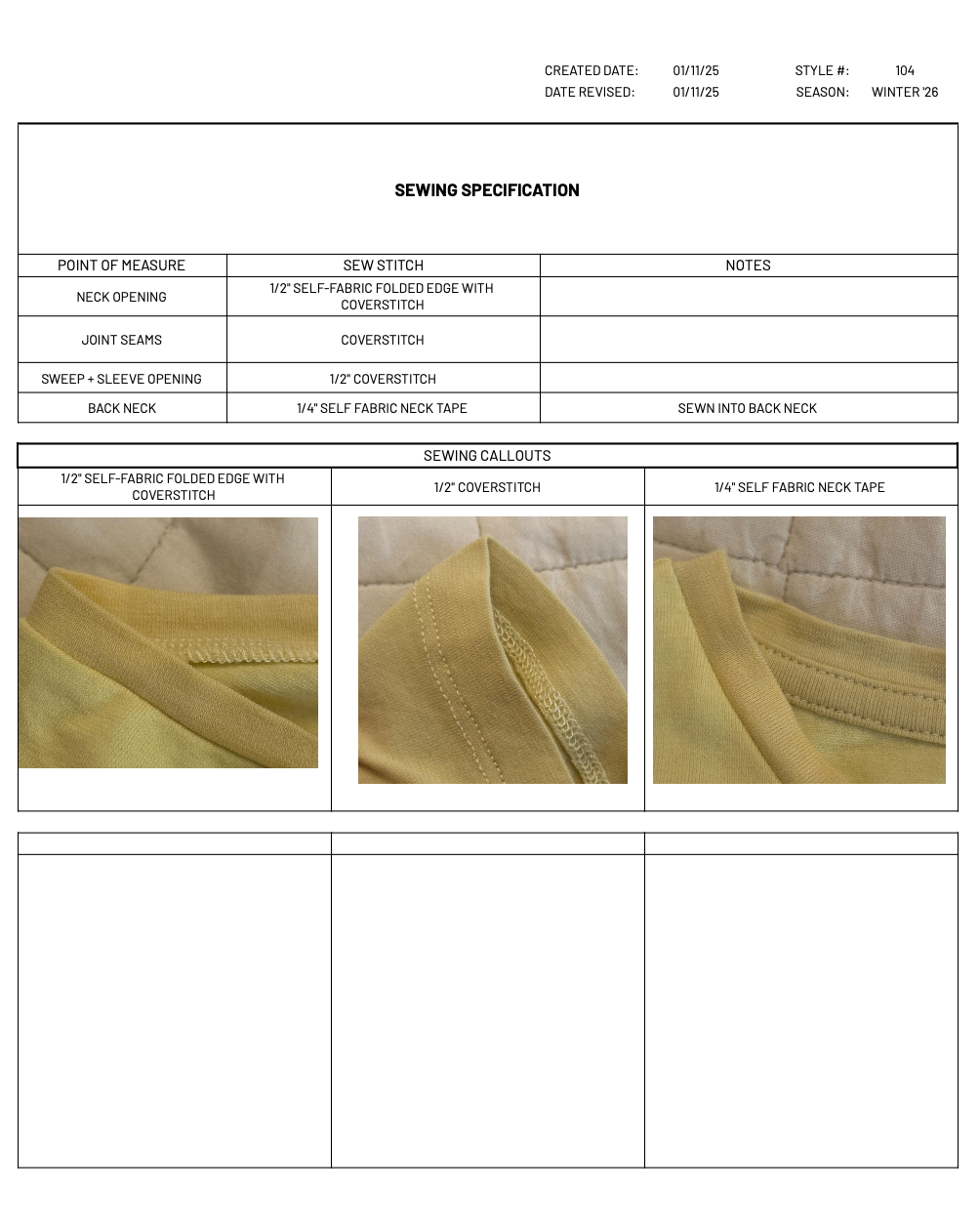

Screenshot 2025-01-23 at 7.55.24 pm.png

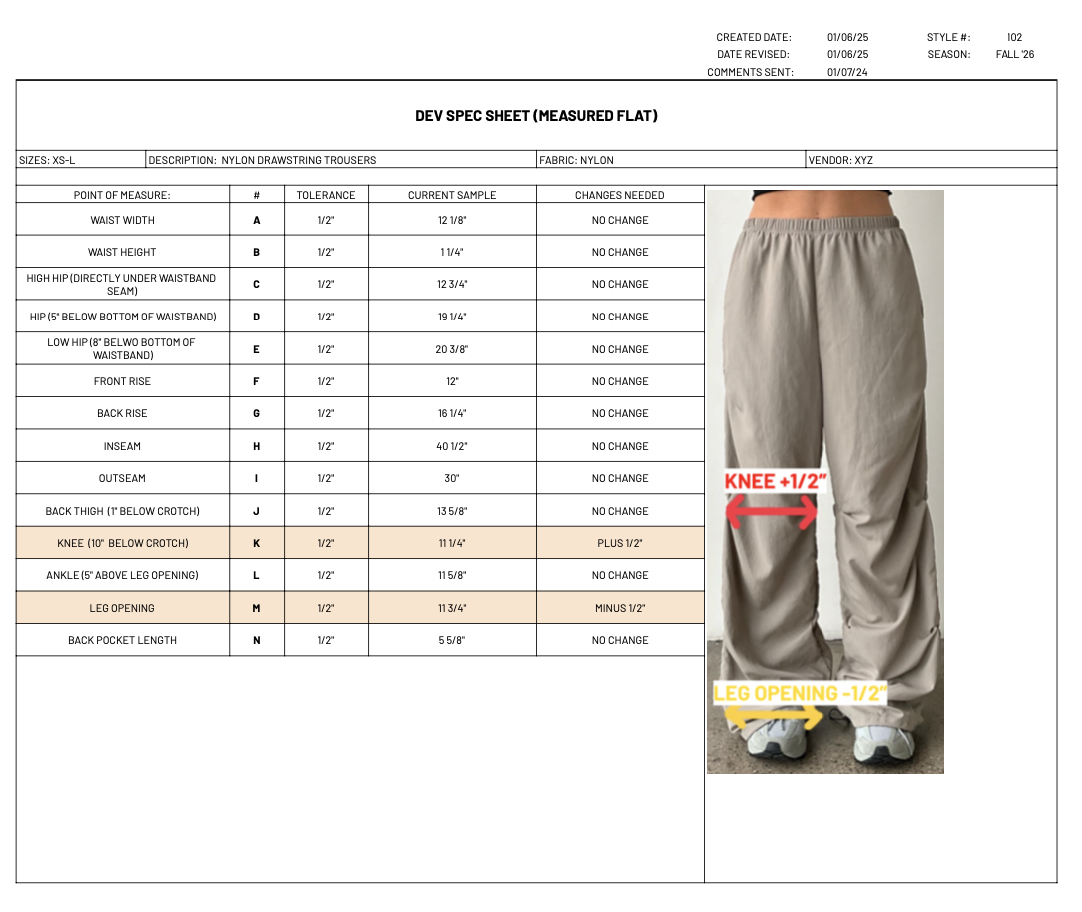

Screenshot 2025-01-23 at 7.54.39 pm.png

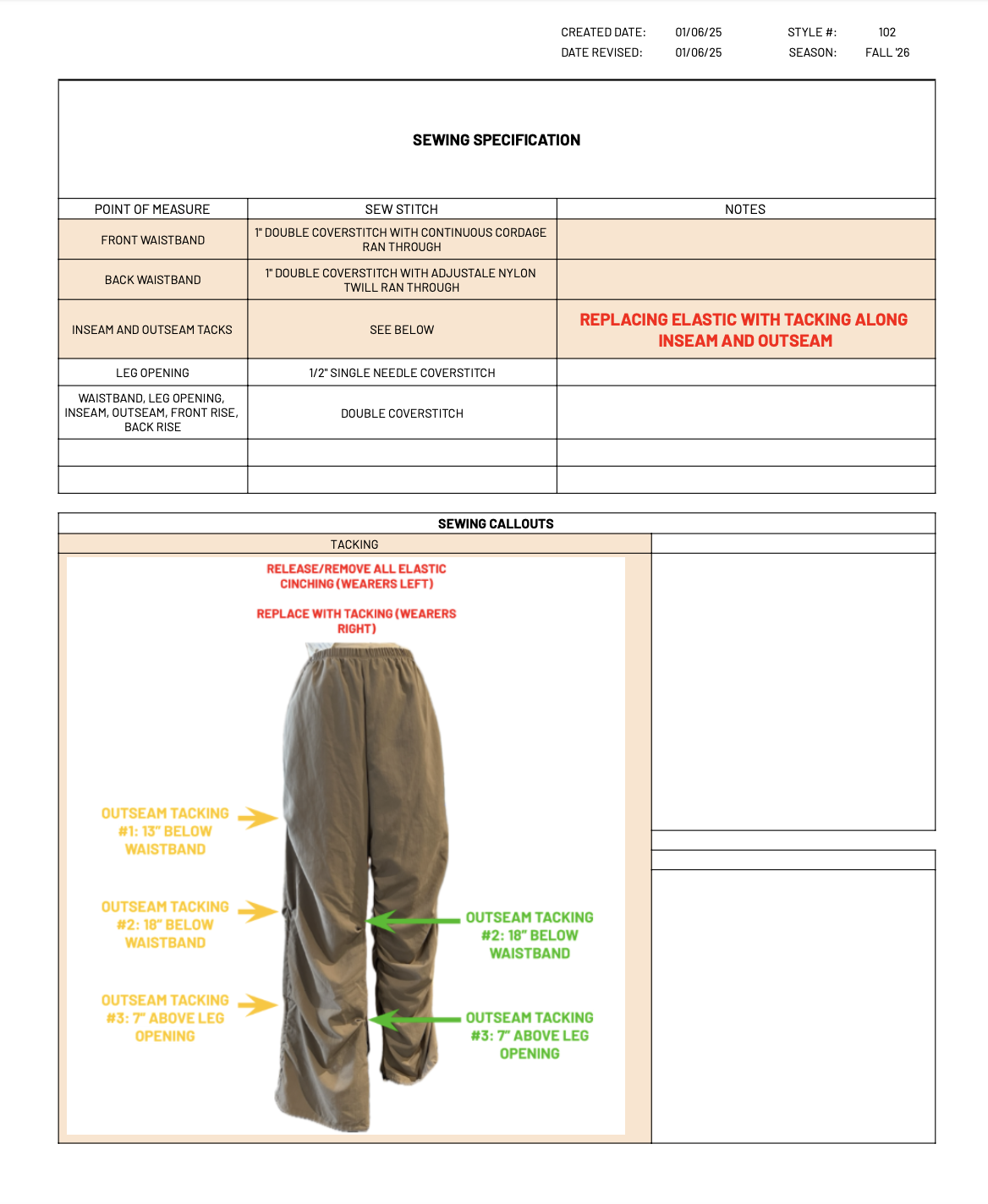

Screenshot 2025-01-23 at 7.54.09 pm.png

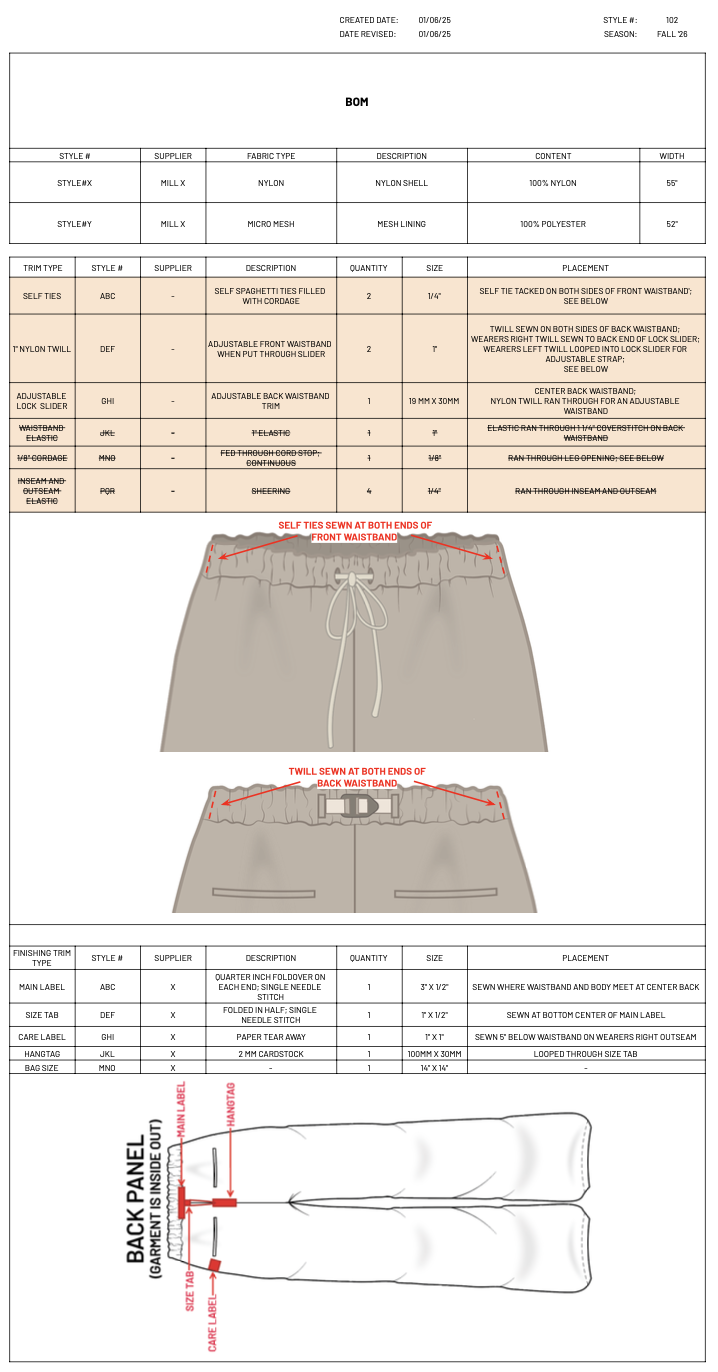

Screenshot 2025-01-23 at 7.50.10 pm.png

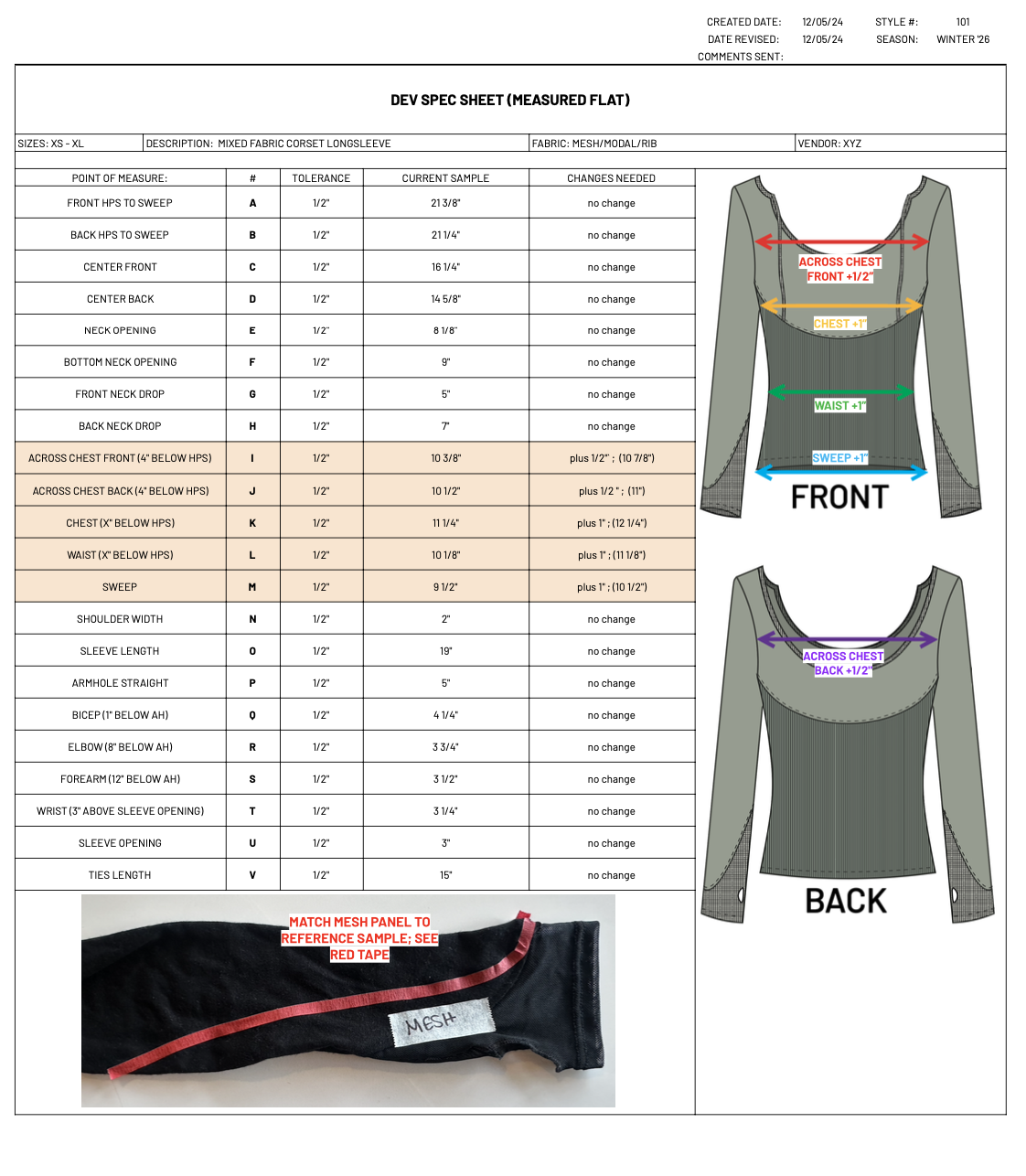

Screenshot 2025-01-23 at 7.57.29 pm.png

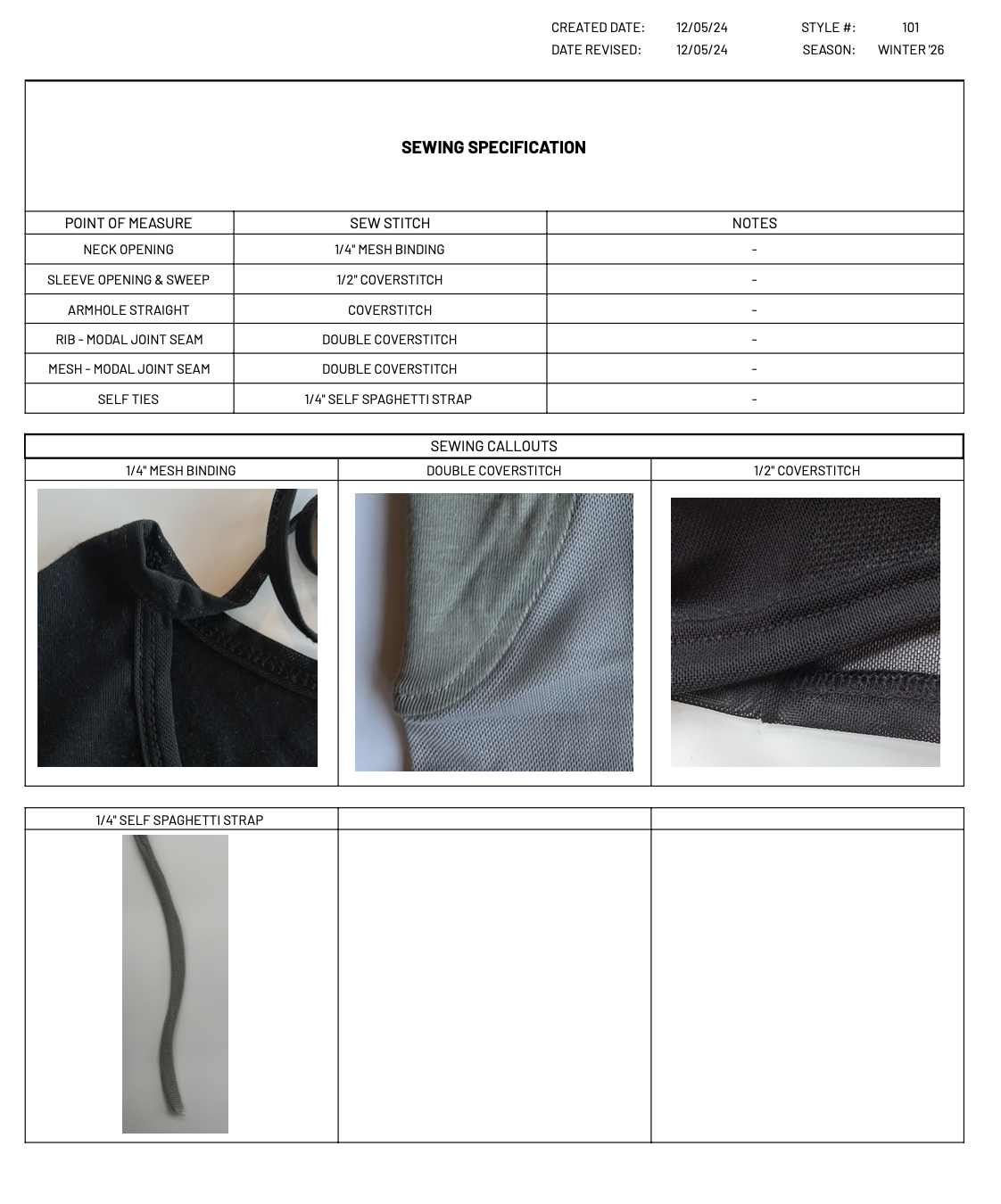

Screenshot 2025-01-23 at 7.57.39 pm.png
